ISBM --Injection Stretch Blow Molding Machine Services

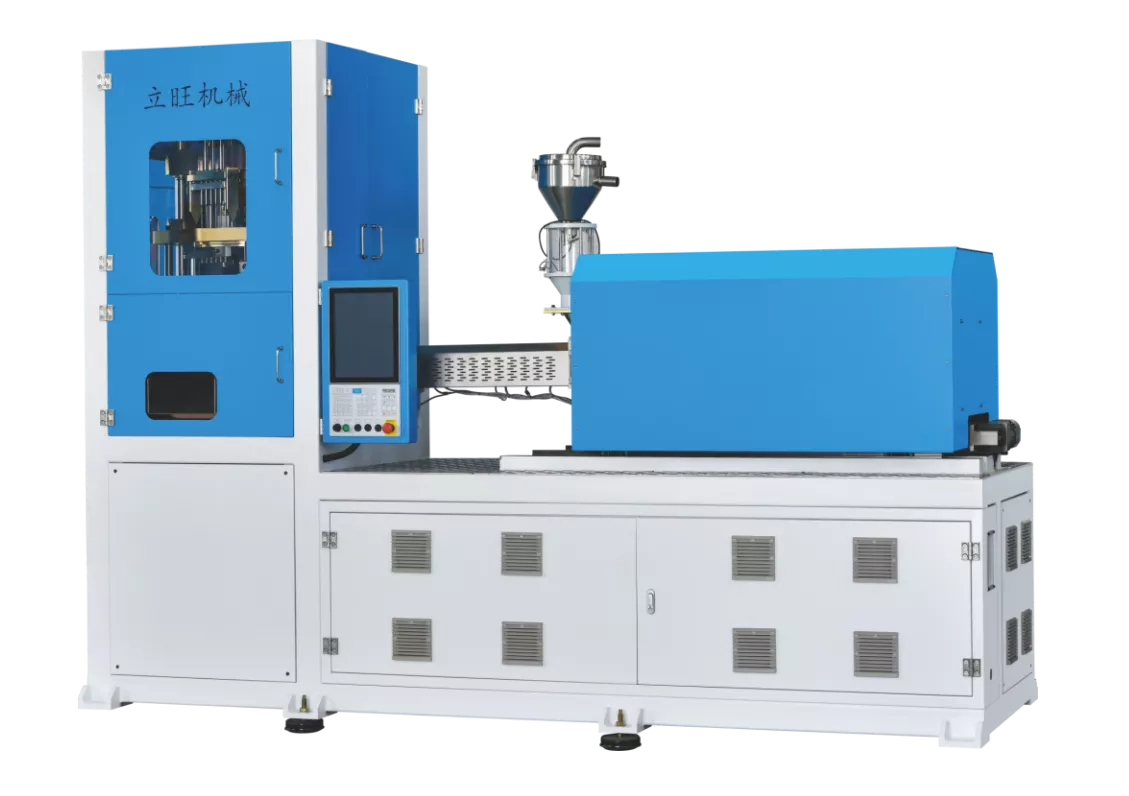

ISBM One Step Machine
In order to meet the growing demand of the market for high-end products and further introduce the new, the "ISBM" series - one-step injection, stretch and blow machines can be developed to produce high-end products of different materials, such as PET/PP/PC/PETG/PEN/PPSU/TRITAN, such as milk bottles, sports water bottles, medicine bottles, cosmetics bottles, perfume bottles, various shaped bottles, wide mouth bottles, etc., with a wide range of applications, strong stability, low energy consumption and small floor area.
Application
Can produce high-quality products of different materials, such as PP milk bottles, PC sports water bottles, PEN medicine bottles, PETG cosmetics bottles, PET perfume bottles, various shaped bottles, Jars, baby bottles, seasoning bottles, etc.
TRITAN Bottle
PETG Bottle

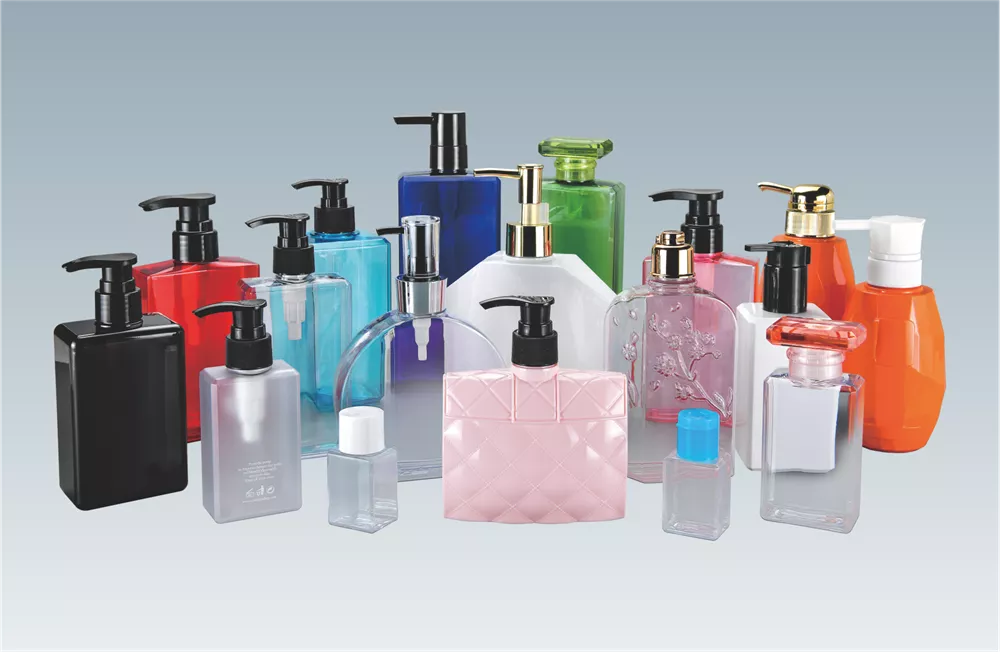

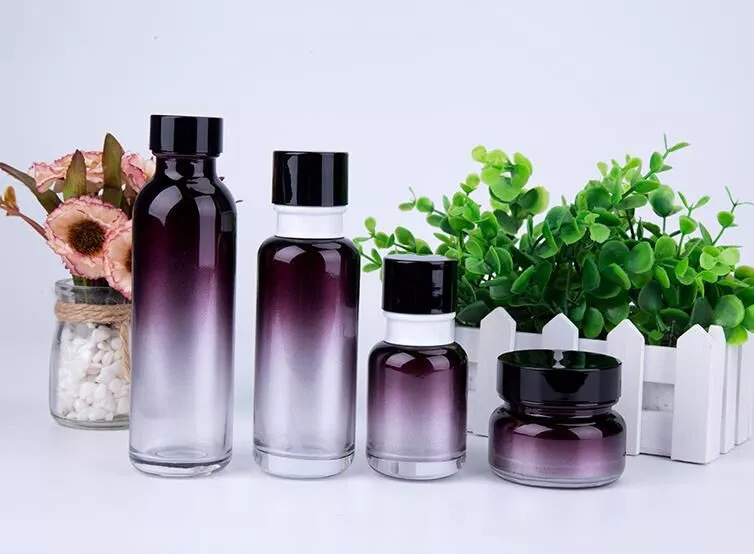

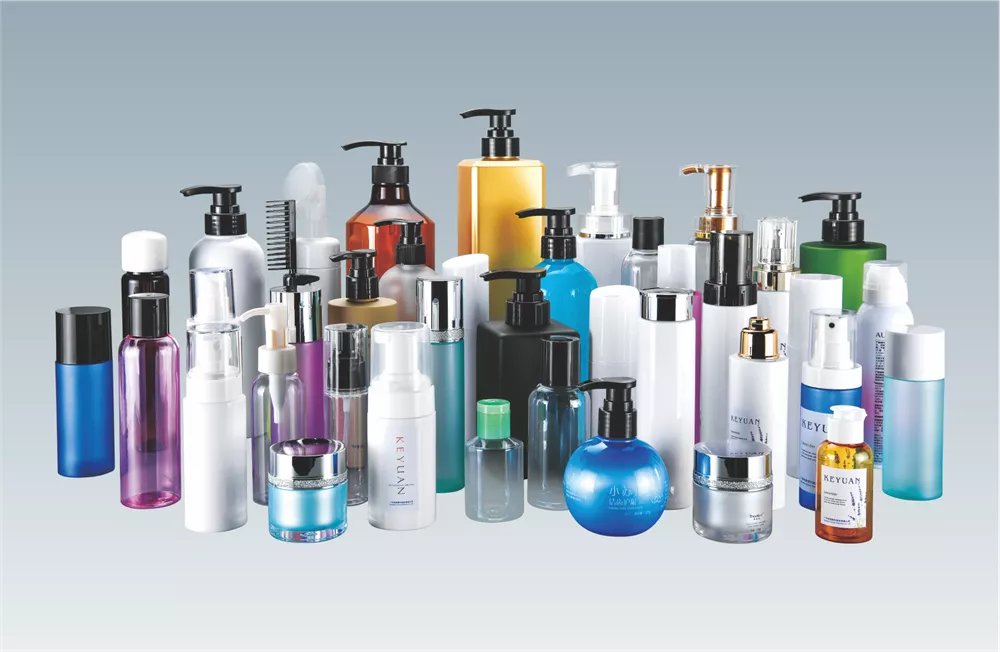

PET Cosmetics
PET

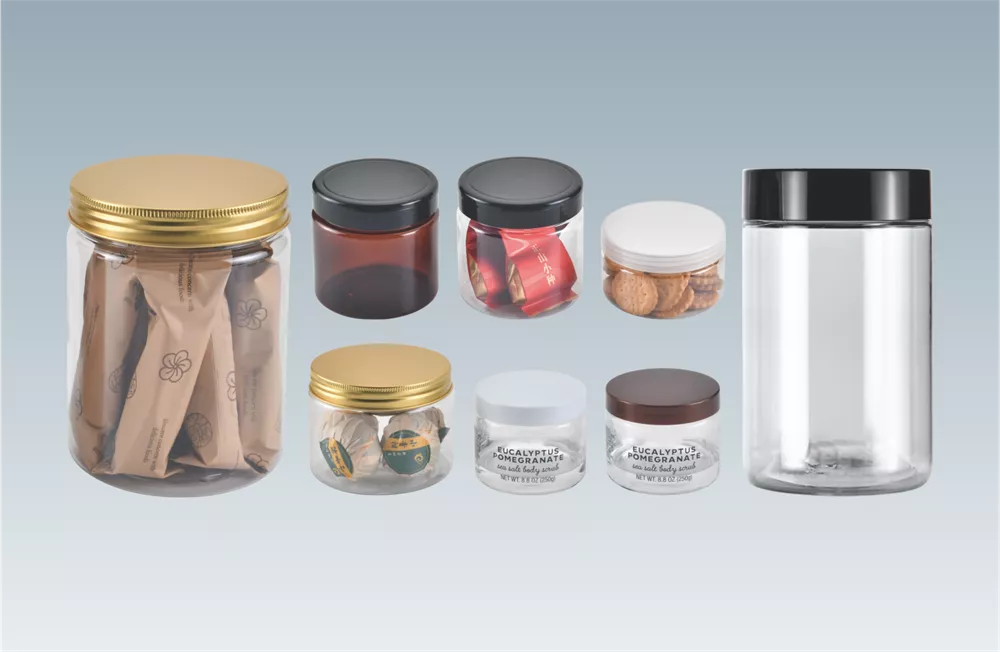

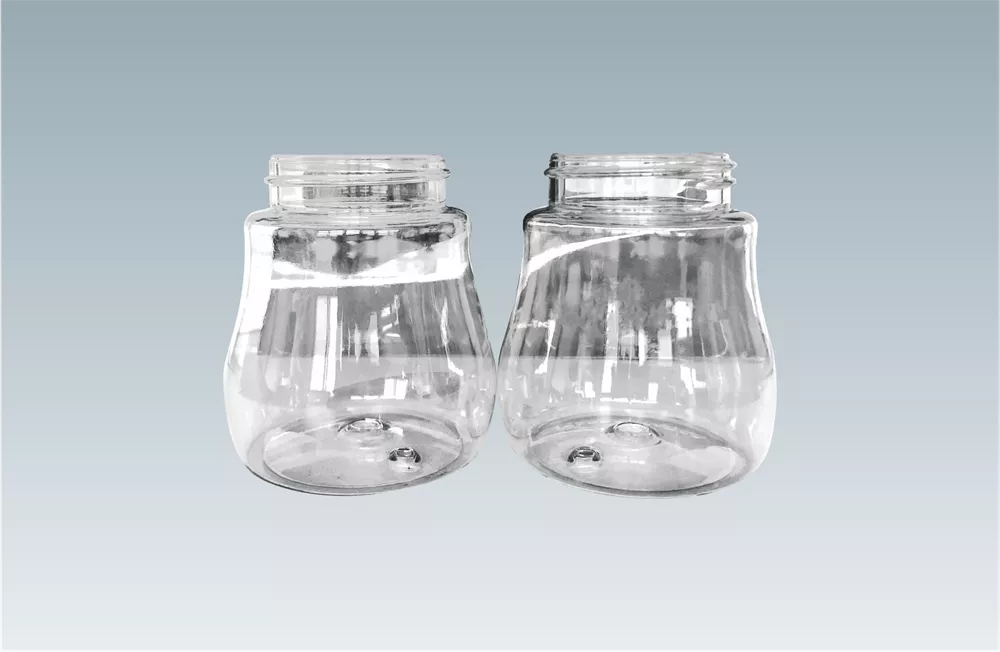

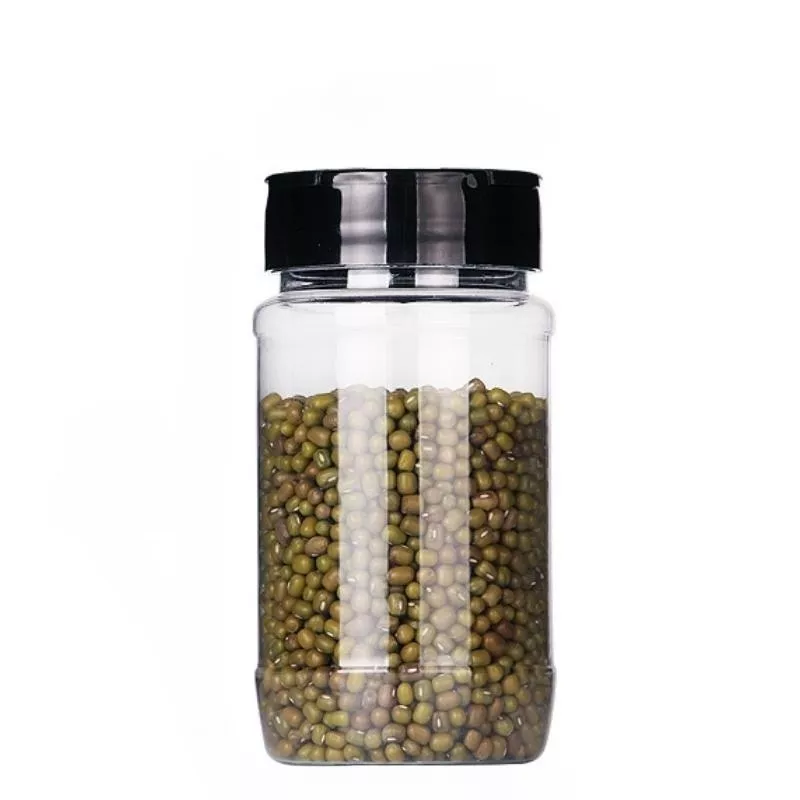

Food Wide Mouth Bottles

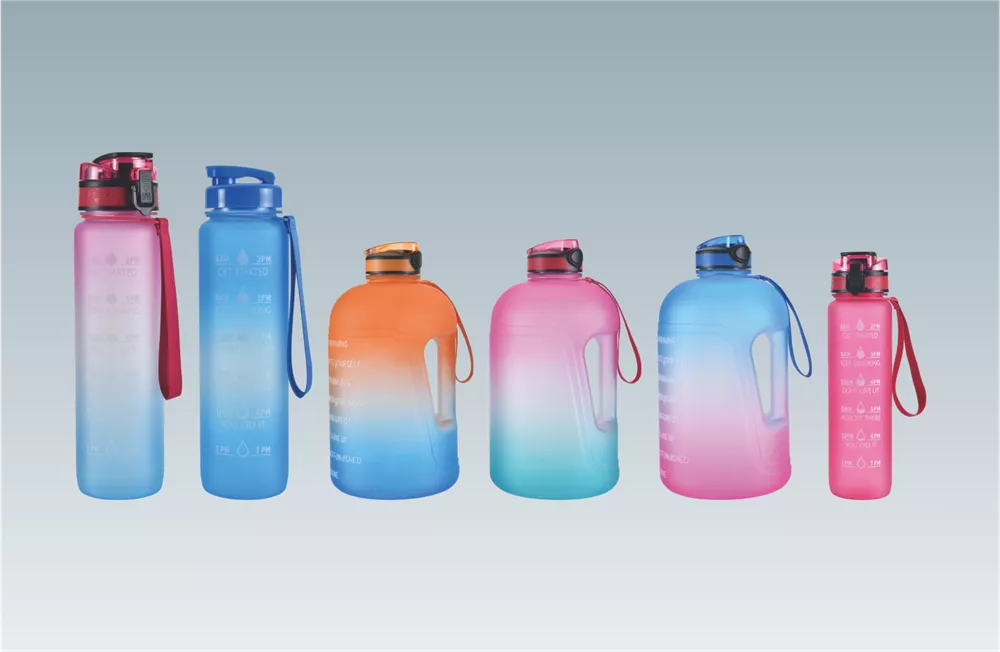

PC Sports Water Bottle

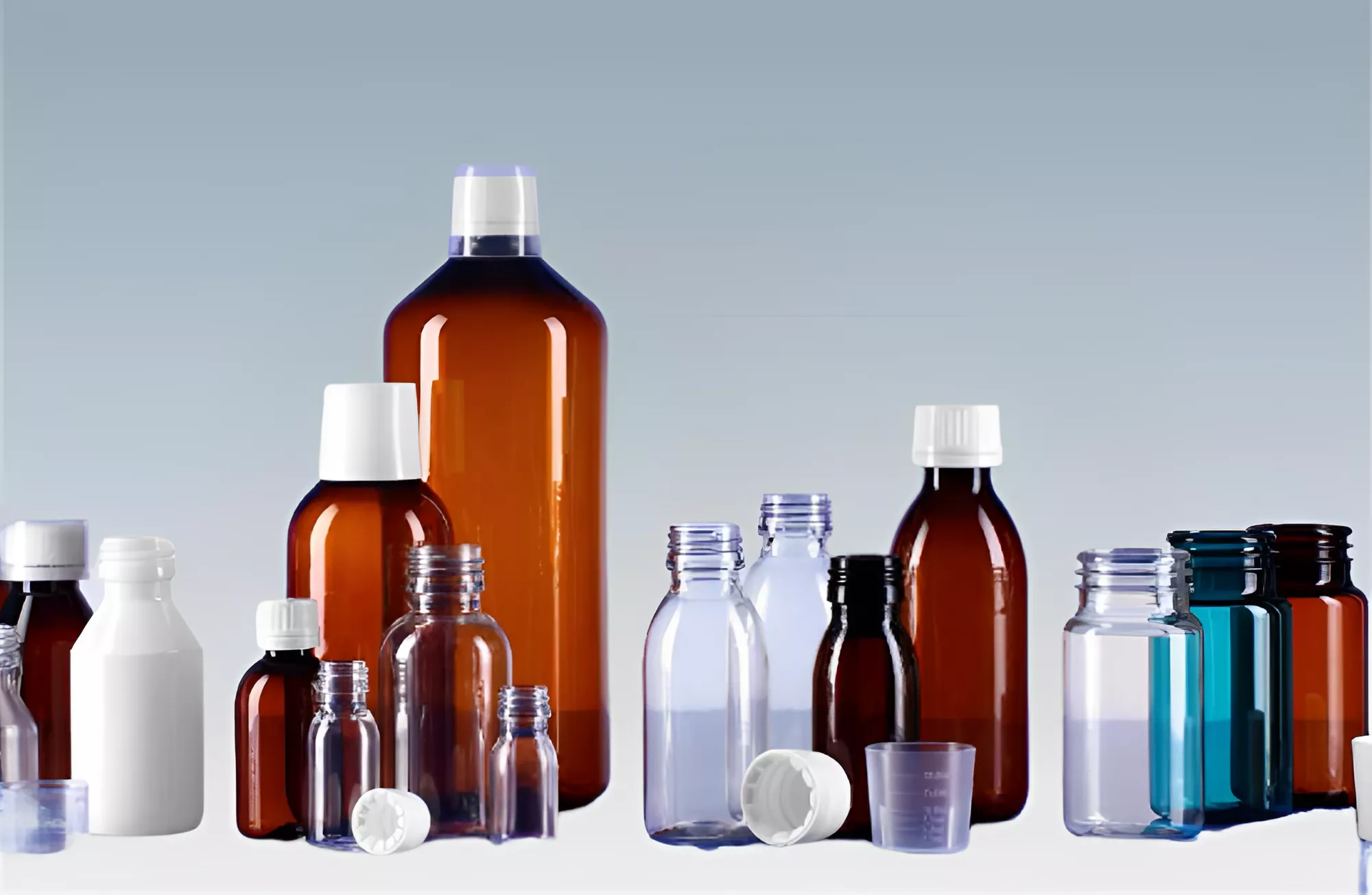

Medicine Bottle

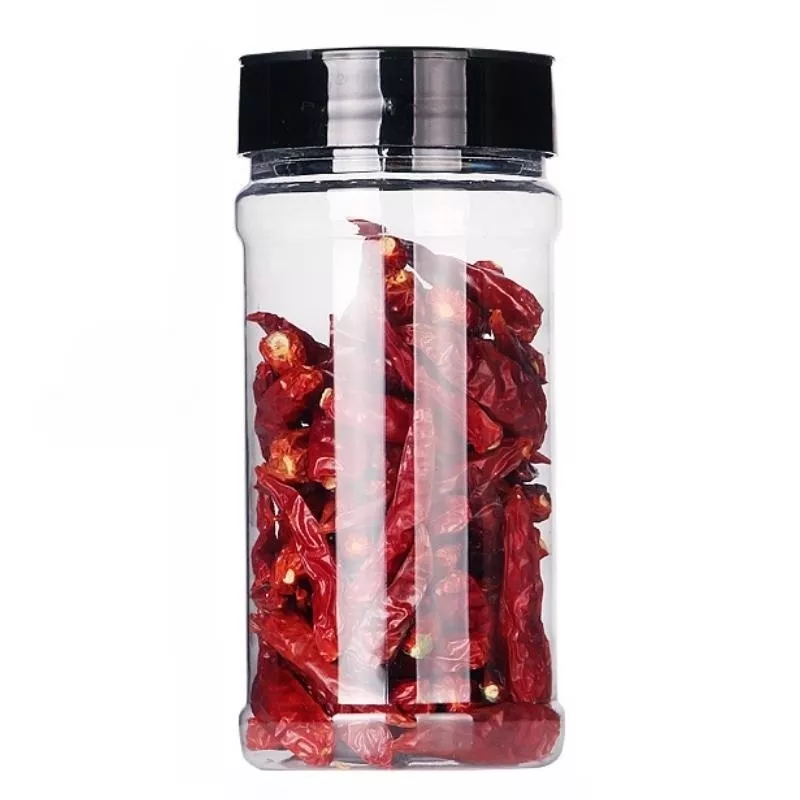

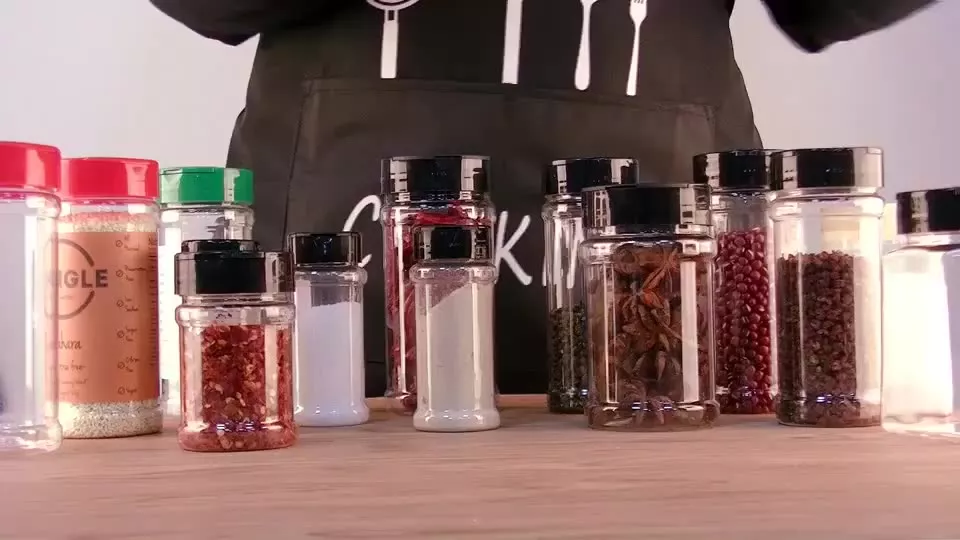

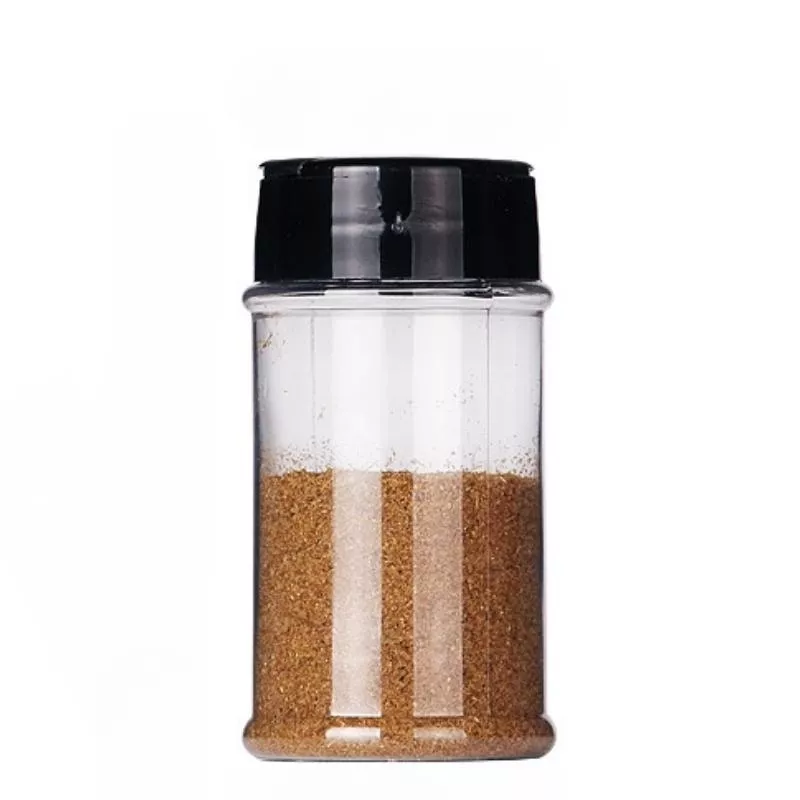

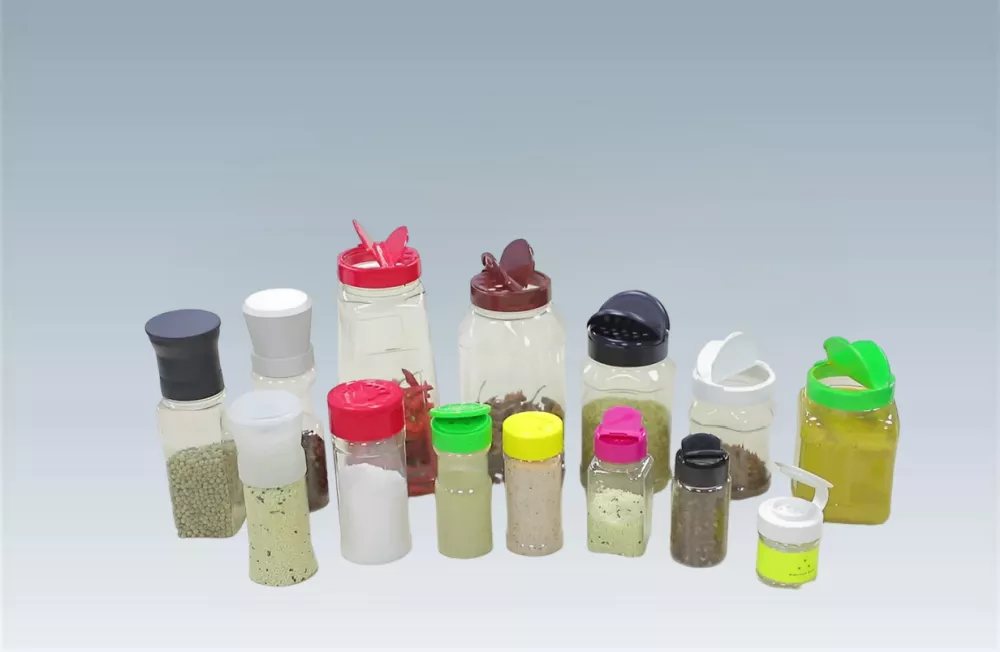

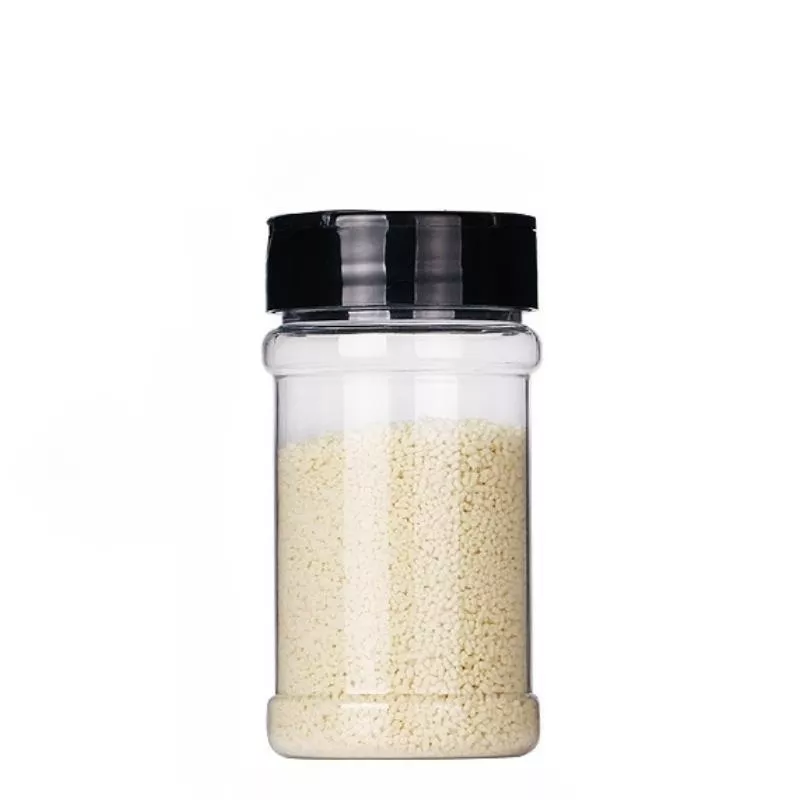

Seasoning Bottle

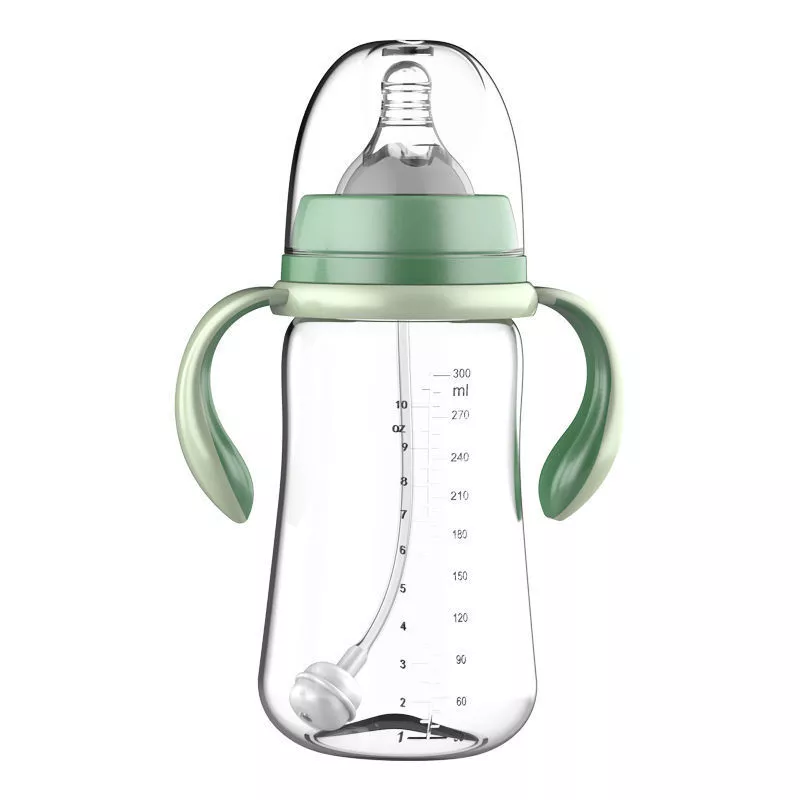

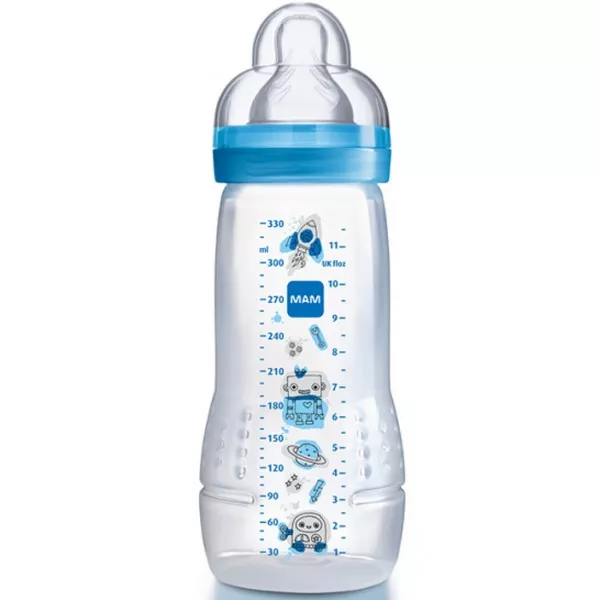

Baby Bottle
LW-50-S6 | LW-50-V5 | LW-120-V3 | LW-120-V4 | LW-120-S6 | |
Cavity | 1-6 | 1-6 | 1-6 | 1-6 | 1-8 |
Max.body diameter mm | 28-90 | 28-90 | 25-105 | 28-90 | 26-118 |
Max.Height mm | 200 | 200 | 200 | 200 | 150-250 |
Max.neck size mm | 17-60 | 17-60 | 15-80 | 17-60 | 15-83 |
Max.weight g | 18-105 | 18-105 | 45-200 | 18-105 | 16-118 |
Max.Volume L | 0.1-2 | 0.1-2 | 0.1-2 | 0.1-2 | 0.02-2.5 |
The Different Output Models You Can Choose
Model: LW-50-S6
Cavity: 1-6
Size: 3.4*1.2*2.5m
Weight:3.5 Ton
Model: LW-50-V5
Cavity: 1-6
Size: 3.4*1.2*2.5m
Weight:3.5 Ton
Model: LW-120-V3
Cavity: 1-6
Size: 4.3*3.1*1.5m
Weight: 6Ton
Model: LW-120-V4
Cavity: 1-6
Size: 3.4*1.2*2.5m
Weight:3.5 Ton
Model: LW-120-S6
Cavity: 1-8
Size: 4.3*1.4*3.4m
Weight: 7Ton
Brand Parts

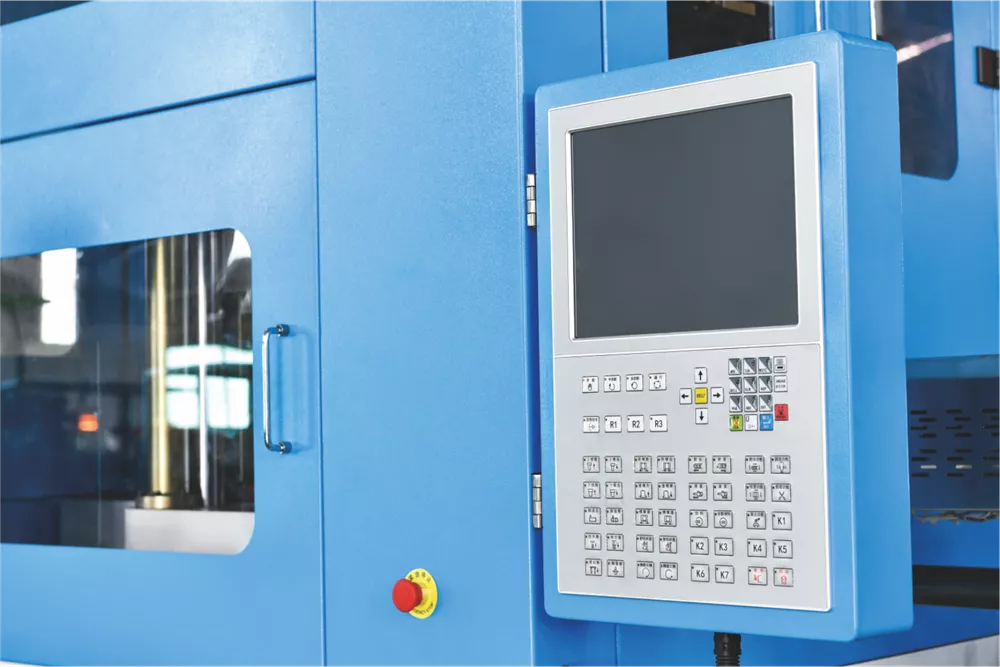

Mirle operation panel

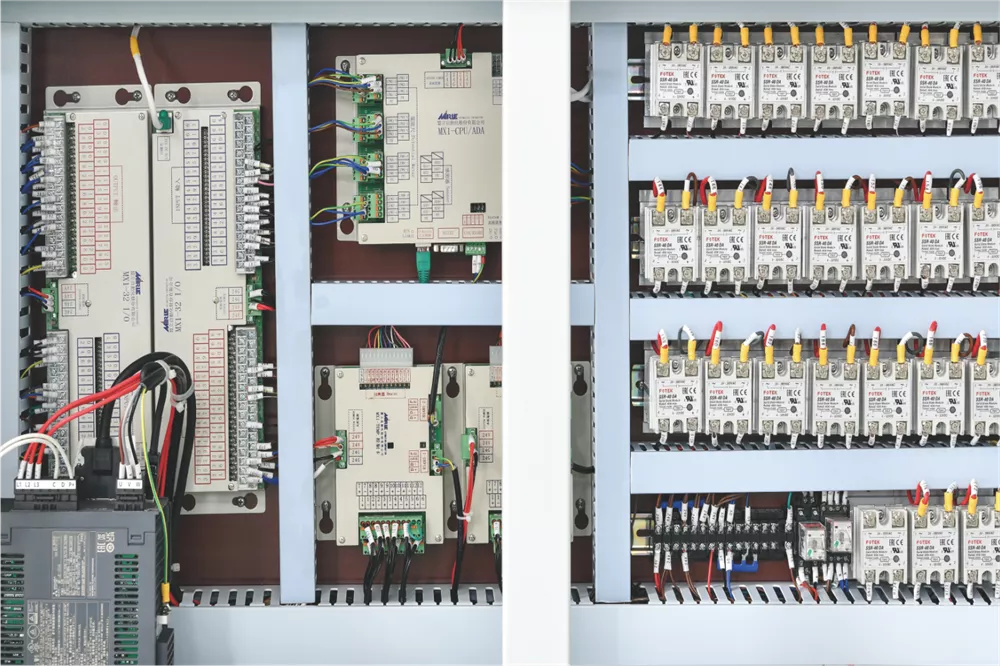

Electric Box 1: Mirle Computer/Fotek SSR

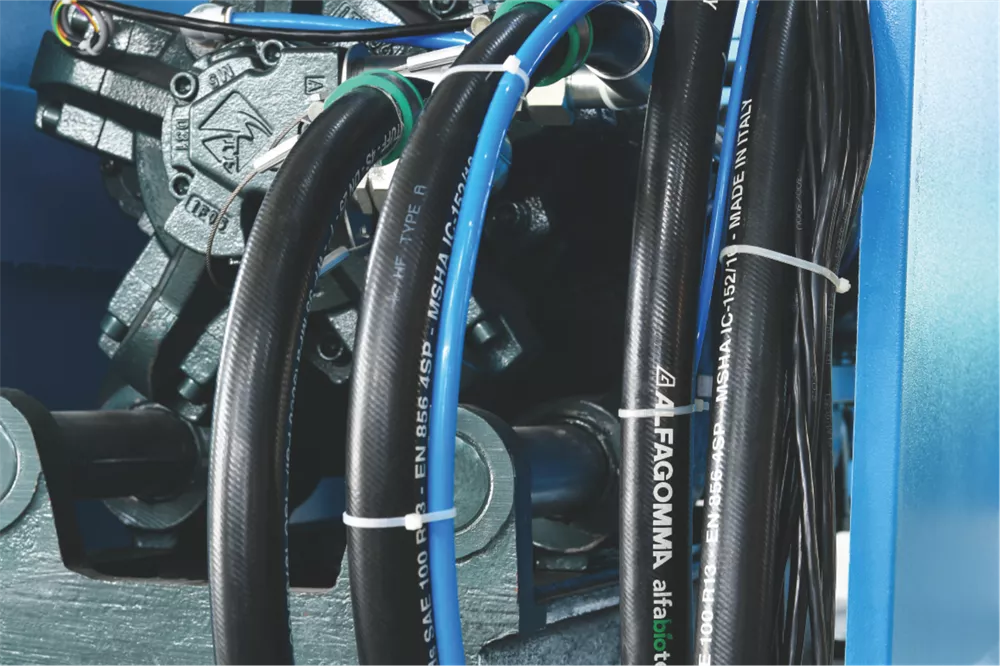

ALFAGOMA high pressure hoses

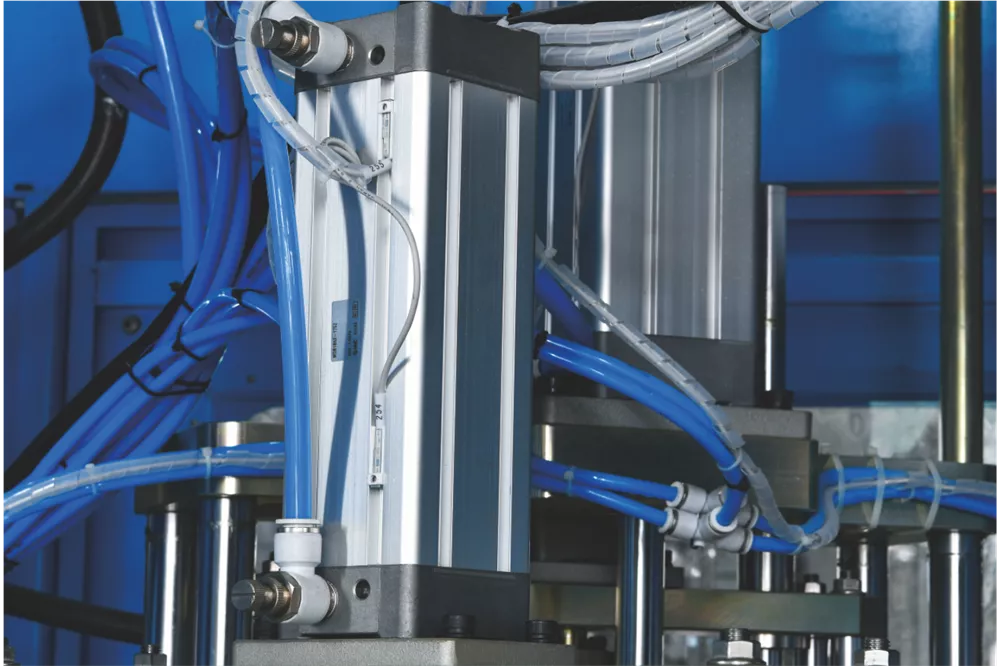

SMC cylinder

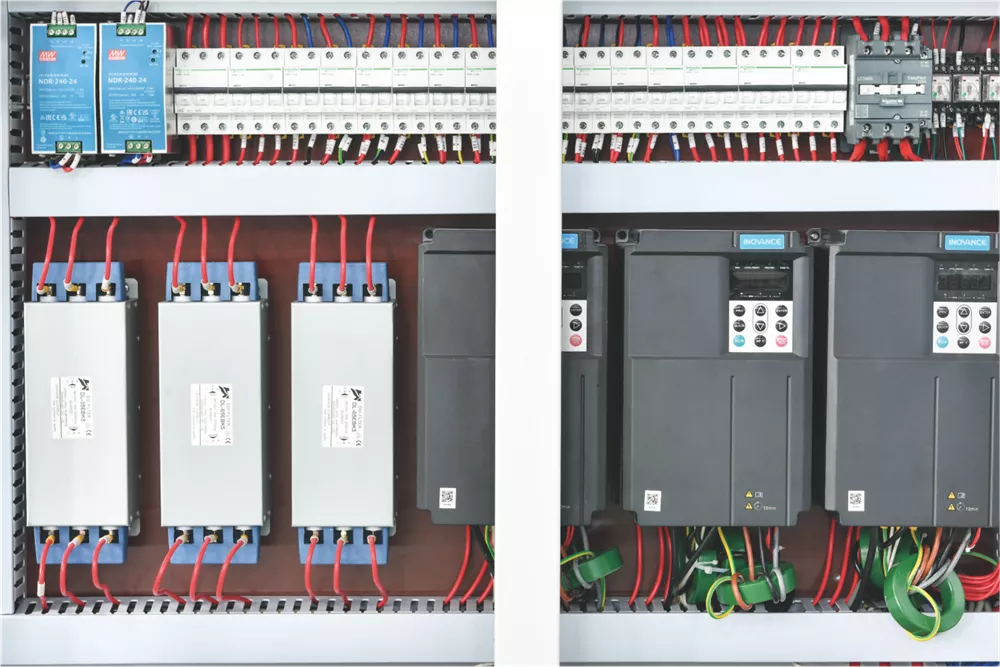

Electric Box 2: Inovance servo drive/Schneider electric components

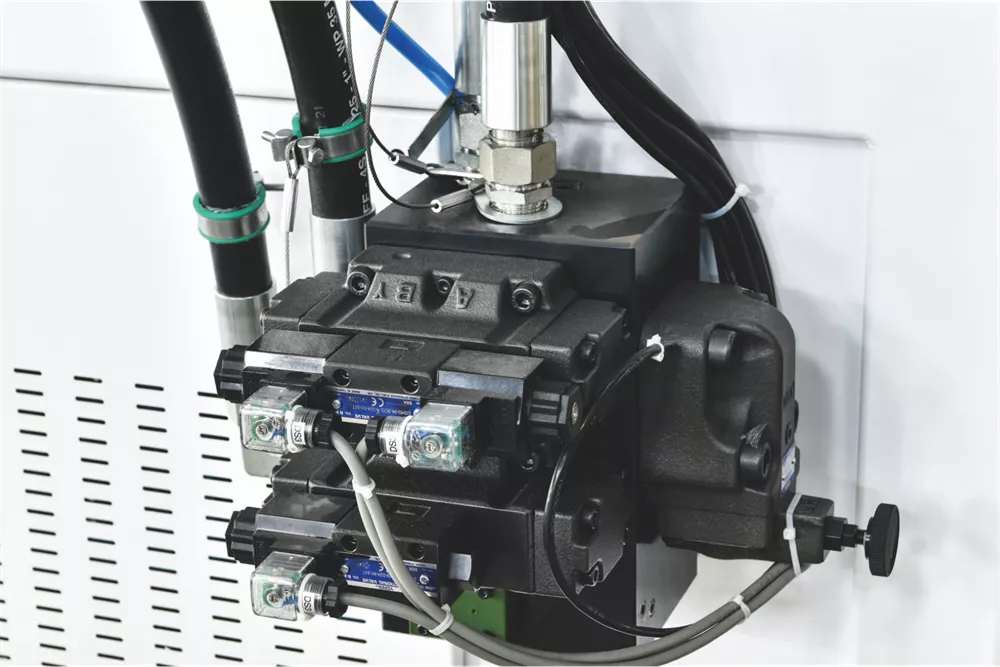

Yuken haudraulic valves

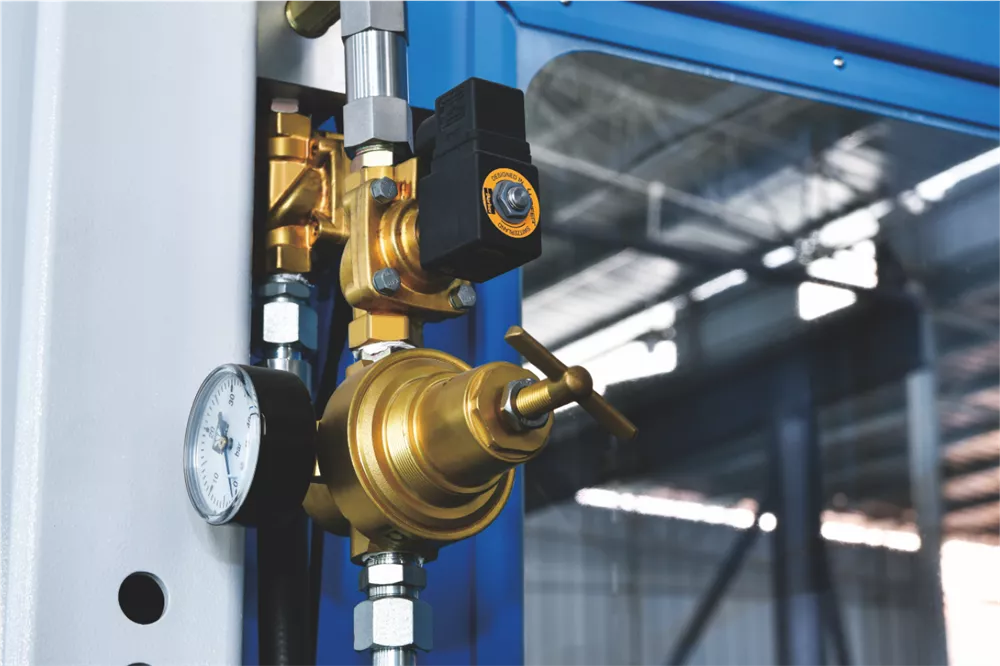

Parker highpressure valve

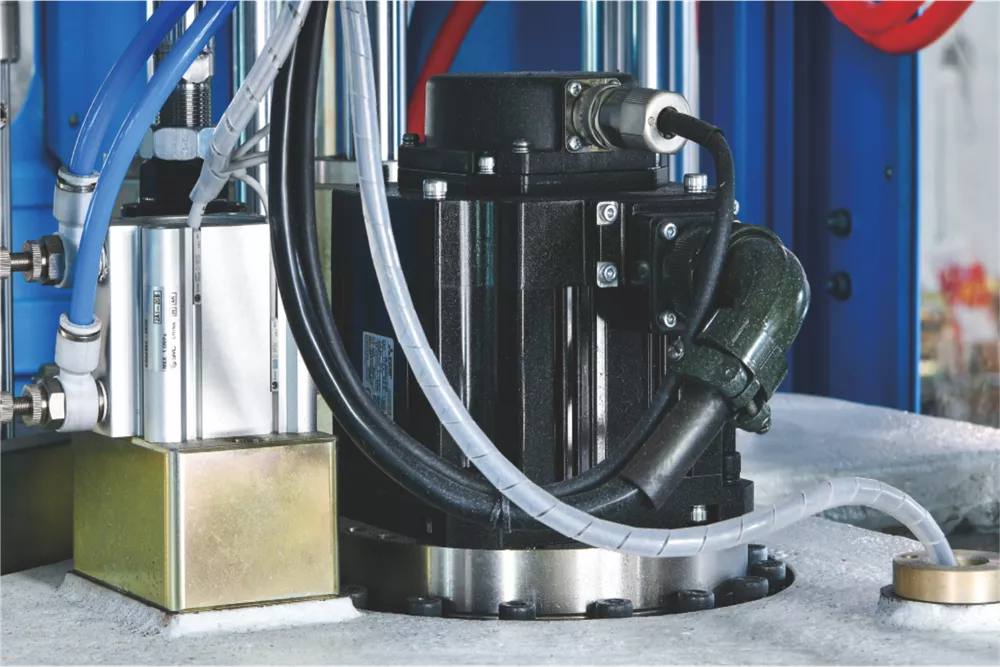

Mitshubisi servo motor for rotating

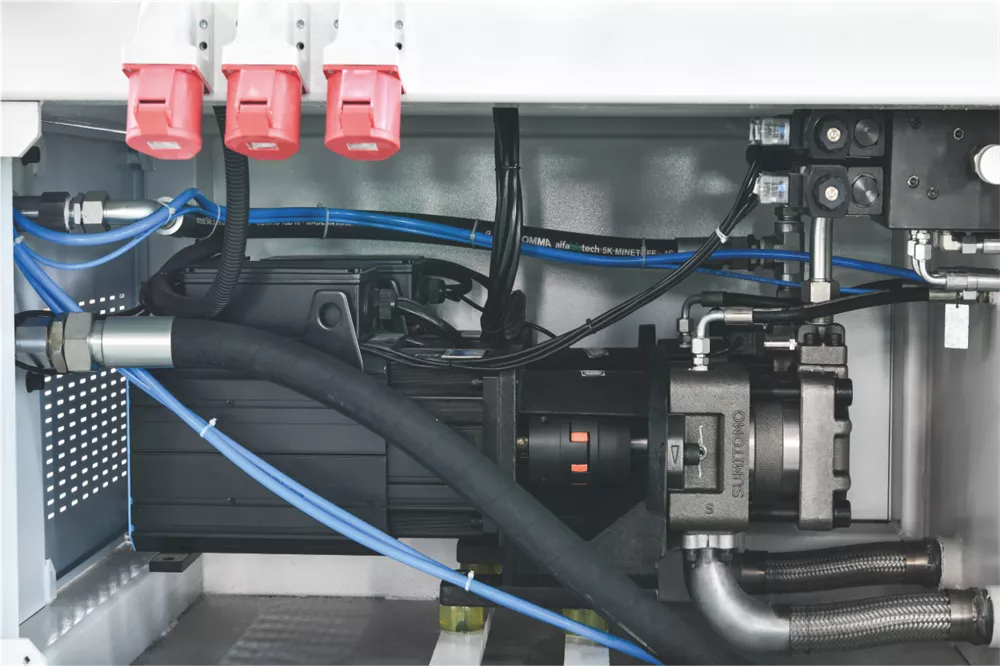

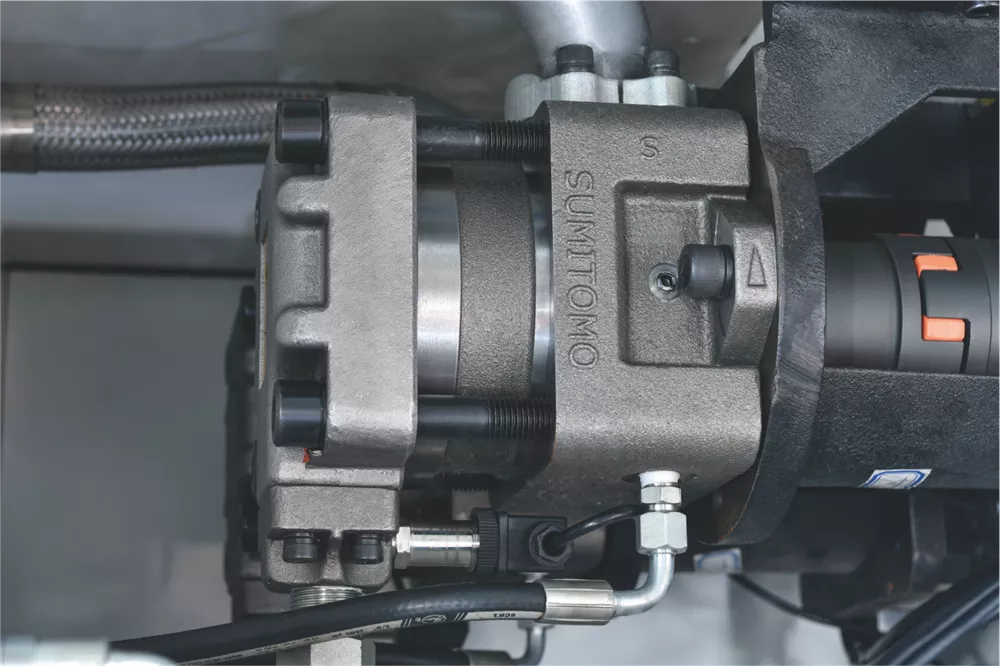

Sumitomo servopump for injection
Inovance servo motor forinjection

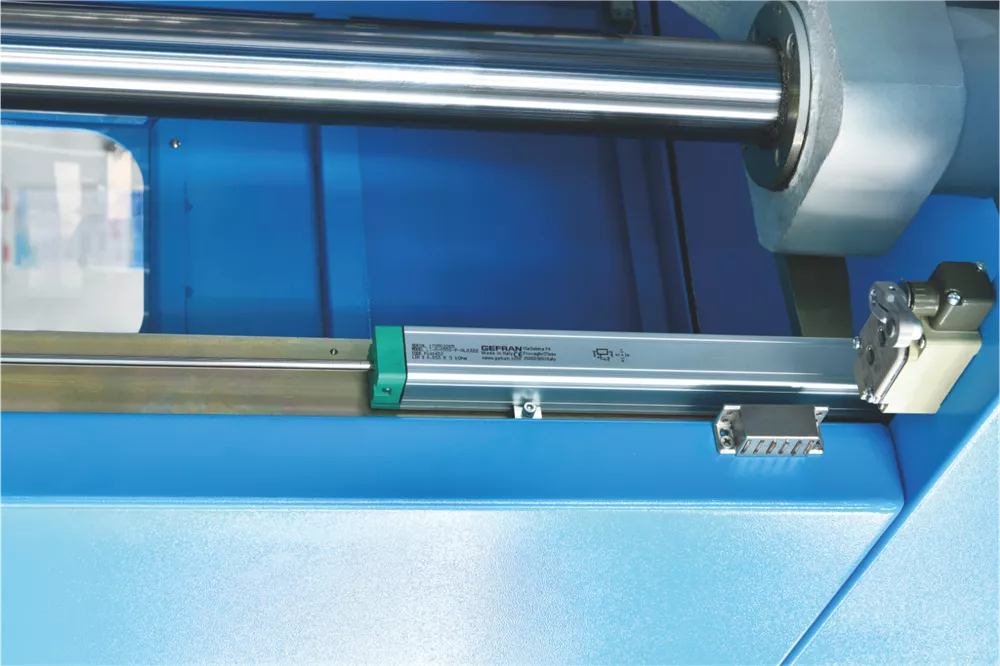

Gefran Linear Displacement Sensor

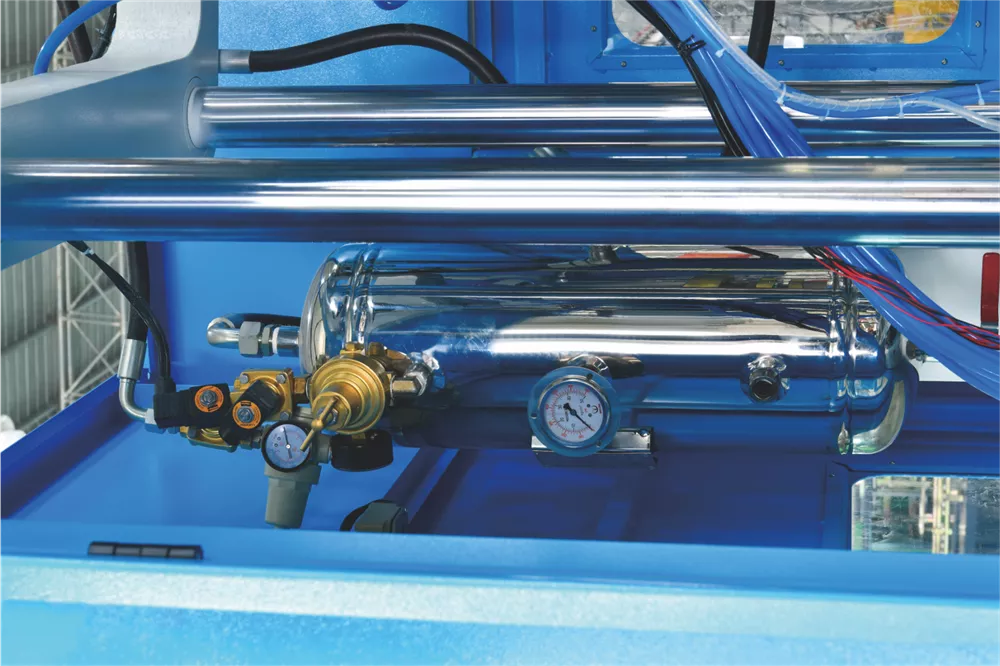

Stainless steel air tank
