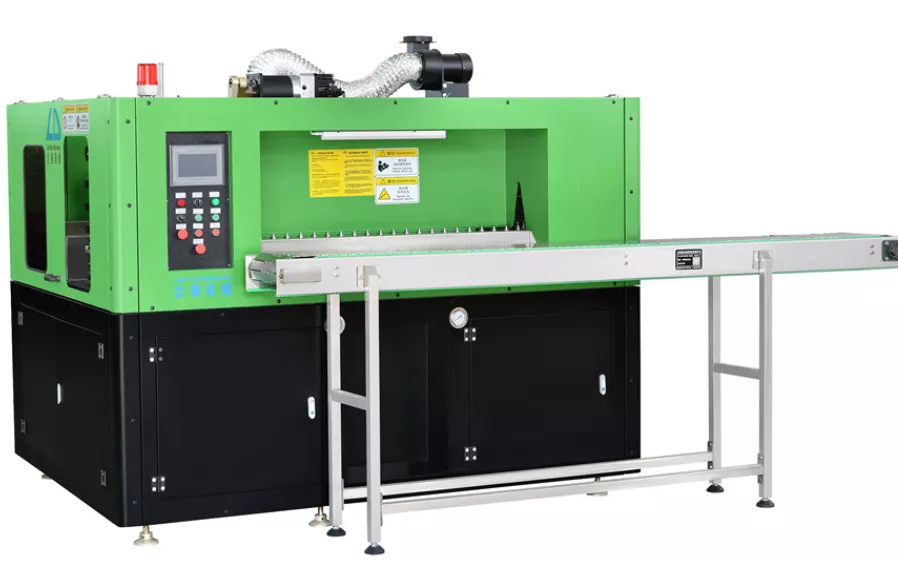

Blow Molding Variable Pitch Series Machine

The machine is customized for those having different central distance molds, mainly for cosmetics, washing products, medicine, food, drinking and other small capacity bottles. The central distance of the machine can be adjusted in the range of 60mm-114.3mm, which is highly compatible;
Electrical and pneumatic components are used Europian, the USA, Japan and other internationally renowned brands, with stable performance, reliability, and durability;
Suitable for blowing PET/PP/PETG/PCTG bottles below 1L, bottle neck 010-89mm.

Injection molded preform heated
Preform secured into blow mold
Preform stretched with core rod
Compressed air simultaneously blown in - preform inflates to mold:
Product is removed from mold
Finished product ready for next production stage
Click To Check The Video
Max. product volume ml600-1000
Max. product diameter mm80-95
Max. neck diameter mm40-89
Max. product height mm240-260
Max. mold height mm180-240
Mold open stroke mm100-120
Mold base open stroke mm25
Mold central distance mm95.25-114.3
pcs42-230
Cavities1-4
Heating Unit4-9
Heating Section8
Rating power KW35-76


The Models
Output/Hours: 900-2200BPH
Model: LD-AS2S
Size: 2.45*1.6*1.8m
Weight:2.5 Ton

Output/Hours: 1800-2500BPH
Model: LD-AS4S
Size: 4.3*1.9*1.8m
Weight:5 Ton

Output/Hours: 400-600BPH
Model: LD-PP1B
Size: 2.5*1.5*1.8m
Weight:1.6 Ton

Output/Hours: 800-1500BPH
Model: LD-PP2B
Size: 4.2*1.5*2.0m
Weight:3.5 Ton

Output/Hours: 2200-3300BPH
Model: LD-PP4HS
Size: 7.8*1.6*2.2m
Weight:6.5 Ton

Get More Model Information !
Why Choose Link-tech Blowing Molding Machine
