IBM vs ISBM: Key Differences in Blow Molding Technologies for Plastic Bottles

In the plastic packaging industry, selecting the right molding technology is essential to ensure the quality, strength, and functionality of the final product. Among the most widely used technologies are Injection Blow Molding (IBM) and Injection Stretch Blow Molding (ISBM). While these two methods may sound similar, they differ significantly in process, application, and product characteristics. This article explores the key differences between IBM and ISBM to help manufacturers, engineers, and decision-makers choose the right solution for their specific needs.

1. Overview of IBM and ISBM

Injection Blow Molding (IBM) is a process that combines injection molding and blow molding to produce hollow plastic products in three stages: injection, blowing, and ejection. It is primarily used for producing small, high-precision containers.

Injection Stretch Blow Molding (ISBM), on the other hand, involves stretching the plastic material during the blowing phase to improve clarity and mechanical strength. This technique is widely used in the production of PET bottles for beverages and other consumer products.

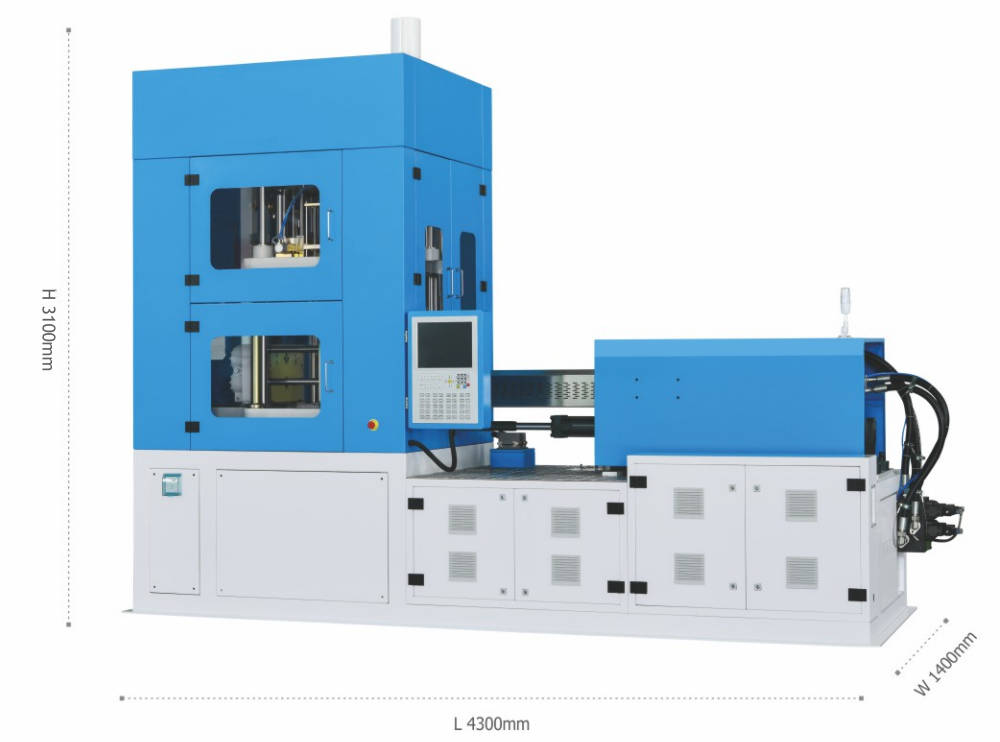

ISBM

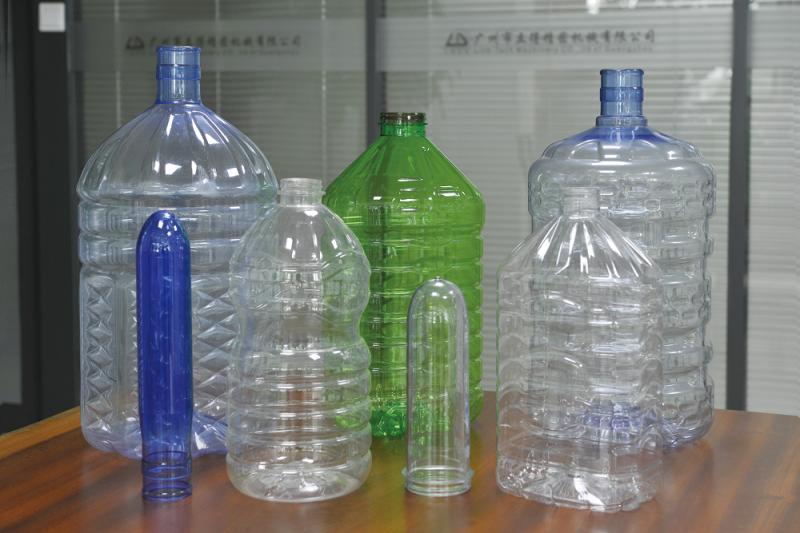

SBM

2. Process Comparison

IBM Process Steps:

Plastic is injected into a mold to form a preform or parison.

The preform is transferred to a blow mold.

Compressed air is used to inflate the preform into the final container shape.

The container is cooled and ejected.

ISBM Process Steps:

Preform is created using injection molding.

The preform is reheated and placed into a stretch blow mold.

A stretch rod elongates the preform.

Compressed air is used to blow the preform into its final shape, creating a biaxially oriented container.

3. Material Suitability

IBM typically uses materials like PP (polypropylene) and HDPE (high-density polyethylene), which are common in pharmaceutical and cosmetic applications.

ISBM is optimized for PET (polyethylene terephthalate), a material known for its excellent clarity and strength, ideal for carbonated drinks and water bottles.

4. Product Application

5. Advantages and Limitations

Advantages of IBM:

High dimensional accuracy.

Suitable for small volume production.

Efficient for pharmaceutical and cosmetic containers.

Limitations of IBM:

Limited material options.

Not suitable for large containers.

Advantages of ISBM:

Excellent mechanical strength due to biaxial orientation.

Superior clarity and lightweight containers.

Ideal for mass production.

Limitations of ISBM:

More complex machinery.

Higher energy consumption.

6. Cost and Production Considerations

While IBM machines are generally more affordable and simpler to operate, they are not ideal for high-speed production. ISBM systems, although more complex and expensive, offer greater efficiency in mass production, especially for PET-based bottles.

For businesses aiming for high-volume transparent packaging, ISBM is often the better investment. However, for companies focusing on precision packaging in pharmaceuticals or cosmetics, IBM offers better control and customization.

7. Which Should You Choose?

Choose IBM if your business produces small, precise bottles with moderate strength requirements, especially in the healthcare or beauty industry.

Choose ISBM if you need clear, lightweight, and strong bottles for food and beverage applications at high volumes.

Your choice will ultimately depend on your material requirements, production volume, bottle design complexity, and end-use market.

FAQ

1. Can both IBM and ISBM use PET materials?
ISBM is ideal for PET due to the stretching process, while IBM generally uses PP or HDPE, as PET is not easily processed without stretching.

2. Which process offers better transparency for bottles?
ISBM provides higher transparency and gloss, making it the preferred choice for beverage packaging.

3. Are IBM machines cheaper than ISBM machines?
Yes, IBM systems are typically less complex and more affordable, but they are better suited for lower-volume, high-precision applications.

4. Can ISBM be used for pharmaceutical packaging?
While possible, IBM is more commonly used in pharma due to its precision and suitable materials.

5. What industries use ISBM the most?
ISBM is widely used in beverage, food, and household product packaging where clarity and strength are critical.
