Understanding Bottle Wall Thickness Distribution in Stretch Blow Molding

Introduction

In stretch blow molding (SBM), one of the most critical factors that affect the final product’s performance is wall thickness distribution. From beverage containers to pharmaceutical bottles, achieving uniform and optimized wall thickness is essential for structural integrity, appearance, and material efficiency. This article explores how wall thickness distribution works in the SBM process, the variables that influence it, and how manufacturers can fine-tune production to ensure quality and minimize waste.

1. What Is Wall Thickness Distribution?

Wall thickness distribution refers to how evenly the PET material is spread across the walls of a bottle after the preform is stretched and blown. Ideally, the thickness should be balanced—not too thin to risk cracking or deformation, and not too thick to waste material or increase costs.

Uncontrolled thickness leads to:

Weak bottle necks or bases

Poor top-load strength

Shrinking or warping under pressure

Irregular aesthetic appearance

2. How SBM Affects Wall Thickness

In stretch blow molding, the PET preform is first heated, then mechanically stretched vertically and blown with high-pressure air horizontally into a bottle mold.

The wall thickness is influenced by:

Stretching Ratio: The extent to which the preform is stretched axially and radially.

Heating Profile: Uneven heating causes inconsistent softening, leading to uneven thickness.

Mold Design: Complex shapes with handles or grooves can affect how the material flows and stretches.

Preform Design: The weight, wall thickness, and geometry of the preform directly impact bottle uniformity.

3. Key Zones of Thickness Concern

PET bottles generally have 3 critical zones:

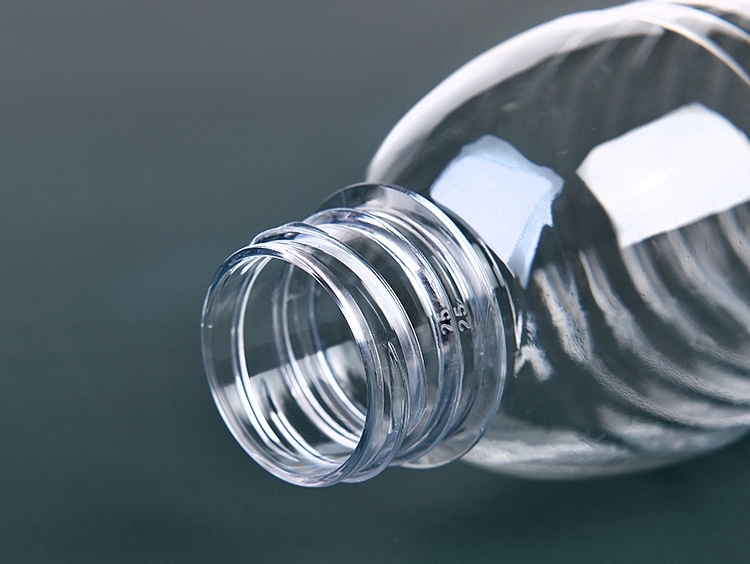

Neck Area: Should be thick enough to support caps and closures.

Body (Sidewall): Must balance strength and flexibility.

Base (Bottom): Most vulnerable to pressure—needs adequate thickness to resist deformation.

Common issues:

Base thinning due to gravity during blowing

Body over-thickening from low stretch ratios

Asymmetry from uneven heating

4. Optimization Strategies

To achieve uniform and controlled wall thickness, manufacturers can take the following actions:

a. Use Proper Preform Design

Match preform weight and length to desired bottle volume.

Ensure proper wall tapering and inner surface finish.

Preform gate location must be centralized to reduce flow disruption.

b. Heat the Preform Precisely

Use infrared heaters with zone-specific control.

Rotate preforms for uniform heat absorption.

Monitor heating time and temperature via sensors.

c. Calibrate Stretch Rods and Air Pressure

Synchronize stretch rod speed with blowing time.

Maintain high-pressure air between 25-40 bar depending on bottle type.

Use multi-stage blowing to gradually shape the bottle without shock thinning.

d. Implement Mold Temperature Control

Use consistent mold cooling to control material flow and set points.

Pay special attention to complex mold areas like the base.

e. Use Simulation Software

Modern blow molding lines often include software like Finite Element Analysis (FEA) to simulate:

Material stretching patterns

Thickness outcomes

Cooling effects

This enables pre-production optimization and reduces trial-and-error.

5. Quality Control and Testing Methods

To verify wall thickness distribution, implement the following testing methods:

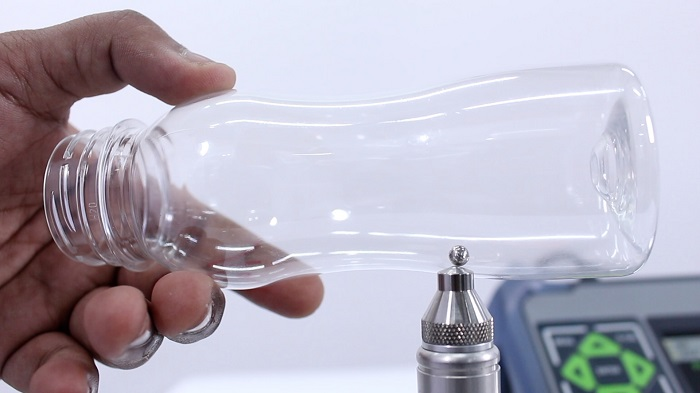

Ultrasound Thickness Gauging: Non-destructive and precise

Cut-and-Weigh Testing: Segment the bottle and weigh each part

Vision Inspection Systems: Inline cameras to detect visual defects

3D Laser Scanning: For high-end applications

Regular monitoring ensures batch-to-batch consistency and product safety.

6. Real-World Application: Australian Beverage Manufacturer

An Australian soda bottler faced issues with bottle bottom collapse during transportation. Upon review, their infrared heater profile was uneven, causing base thinning. By installing a multi-zone temperature controller and upgrading their stretch rods for synchronized movement, they achieved:

14% better wall thickness consistency

10% reduction in bottle weight (material savings)

22% fewer returns due to deformation

Conclusion

Wall thickness distribution is more than just a technical detail—it’s a determining factor in PET bottle performance, cost efficiency, and brand reputation. Through proper design, heating, stretching, and testing, manufacturers can achieve optimal results and maintain consistent product quality across large volumes. As stretch blow molding continues to serve industries with high output needs, mastering wall thickness control becomes a competitive advantage.

Frequently Asked Questions (FAQs)

1. What is the ideal wall thickness for PET bottles?
It depends on bottle size, but generally ranges from 0.3 mm to 0.6 mm for beverage containers.

2. Can I adjust wall thickness without changing the mold?
Yes, by modifying preform design, heater settings, and stretch/blow parameters.

3. What causes uneven bottle walls during SBM?
Most often, improper heating or inconsistent stretching force leads to irregular distribution.

4. How do I test wall thickness in a finished bottle?
Use non-destructive methods like ultrasonic thickness gauges or destructive cut-weigh analysis.

5. Does wall thickness affect bottle clarity?
Yes. Thinner areas may become hazy or prone to stress marks if not uniformly stretched.
