Common Quality Issues in Stretch Blow Molding and How to Address Them

Stretch blow molding is a widely used manufacturing process for producing plastic containers. It is commonly used in the beverage, food, and personal care industries due to its cost-effectiveness and efficiency. However, despite its benefits, stretch blow molding can also lead to some quality issues that can impact the performance and appearance of the final product. In this article, Link-Tech will discuss some common quality issues in stretch blow molding and how to address them.

Before discussing the common quality issues in stretch blow molding, it's essential to understand the process. Stretch blow molding is a two-stage process that involves heating a preform to a specific temperature and stretching it to form the desired shape.

• Common Quality Issues in Stretch Blow Molding

(1)Uneven Wall Thickness: One of the most common quality issues in stretch blow molding is uneven wall thickness. This issue can occur due to several factors, such as uneven preform heating, insufficient stretching, or poor mold design. Uneven wall thickness can lead to poor product performance, deformation, or even product failure.

(2)Poor Surface Finish: Another common quality issue in stretch blow molding is poor surface finish. This issue can occur due to various factors, such as improper mold design, improper preform temperature, or poor stretching. Poor surface finish can affect the aesthetics of the product and impact its perceived quality.

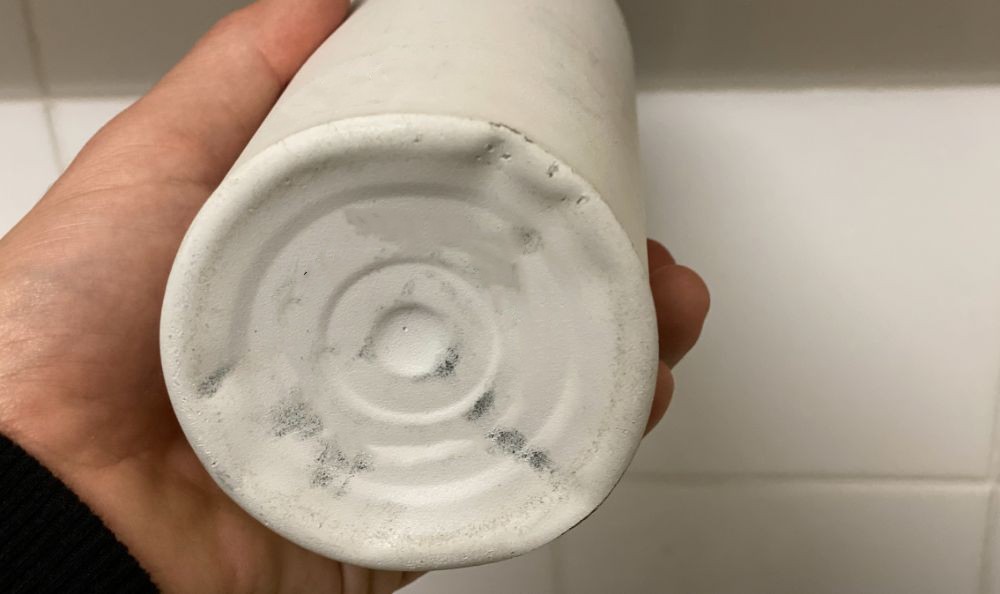

(3)Bottom Defects: Bottom defects are also a common quality issue in stretch blow molding. These defects can occur due to insufficient preform heating, poor stretching, or improper mold design. Bottom defects can affect the stability of the product and make it difficult to stack or store.

(4)Neck Finish Issues: Neck finish issues are mainly caused by inadequate cooling and heat dissipation at the bottle neck during preform heating. Therefore, it's crucial to ensure proper cooling of the neck finish area during preform heating to avoid such issues and achieve high-quality blow-molded products.

(5)Inconsistent Weight: Inconsistent weight is another common quality issue in stretch blow molding. This issue can occur due to uneven preform heating, poor stretching, or improper mold design. Inconsistent weight can affect the product's performance and make it difficult to stack or store.

• How to Address Common Quality Issues

Maintain Consistent Preform Heating: To address uneven wall thickness and inconsistent weight, it's crucial to maintain consistent preform heating. This can be achieved by ensuring that the preform is heated evenly throughout the process.

Optimize Stretching Parameters: To address poor surface finish and bottom defects, it's essential to optimize stretching parameters. This can be achieved by adjusting the stretching speed, stretching ratio, and blowing pressure to ensure that the preform is stretched uniformly.

Improve Mold Design: To address all of the common quality issues in stretch blow molding, it's essential to improve mold design. This can be achieved by optimizing the mold cavity design, reducing mold complexity, and ensuring that the mold is properly maintained.

• Conclusion

Stretch blow molding is a cost-effective and efficient manufacturing process for producing plastic containers. However, it can also lead to some common quality issues that can impact the product's performance and appearance. To address these issues, it's essential to maintain consistent preform heating, optimize stretching parameters, and improve mold design.

FAQs

1.What are the common quality issues in stretch blow molding?

Common quality issues in stretch blow molding include uneven wall thickness, poor surface finish, bottom defects, neck finish issues, and inconsistent weight.

2.How can uneven wall thickness be addressed?

Uneven wall thickness can be addressed by maintaining consistent preform heating.

3.How can poor surface finish be addressed?

Poor surface finish can be addressed by optimizing stretching parameters.

4.How can mold design be improved to address quality issues?

Mold design can be improved by optimizing the mold cavity design, reducing mold complexity, and ensuring proper maintenance.
