How to Optimize Airflow and Cooling Systems in PET Blow Molding Machines

Blow molding machines used in PET bottle production rely heavily on precise airflow control and efficient cooling systems to maintain consistent bottle quality and high production output. However, many manufacturers underestimate how critical these systems are to overall machine performance. This article explores how you can optimize airflow and cooling in your PET blow molding machine to extend its lifespan, improve product consistency, and reduce energy consumption.

1. The Role of Airflow in PET Blow Molding

Air is not only the force that forms the bottle shape but also the element that influences cycle time, clarity, and wall thickness. There are two key airflow processes:

Pre-blow air: Helps stretch the preform before the main blow.

Main blow air: Expands the preform into the mold cavity.

If airflow is inconsistent or pressure is too low, bottles may become uneven, with improper wall thickness or weak bottoms. Too high, and it may damage molds or waste energy.

Optimization Tips:

Ensure the air compressor has sufficient capacity and minimal pressure fluctuations.

Use high-quality air filters to prevent contamination.

Maintain valves and solenoids to regulate airflow precisely.

Monitor airflow sensors and use feedback systems for real-time adjustments.

2. Optimizing the Cooling System

Cooling affects the bottle's strength, shape retention, and production cycle speed. Poor cooling leads to deformities or prolonged cycles. Cooling systems include:

Mold Cooling: Circulates water or coolant through mold channels.

Neck and Base Cooling: Critical for shape accuracy and de-flashing.

After-Blow Cooling: Maintains shape after bottle ejection.

Optimization Tips:

Use a closed-loop chiller system for consistent water temperature.

Clean mold cooling channels regularly to prevent blockages.

Monitor coolant flow rate and pressure.

Invest in water treatment to reduce scale and corrosion.

3. Integrating Air and Cooling System Controls

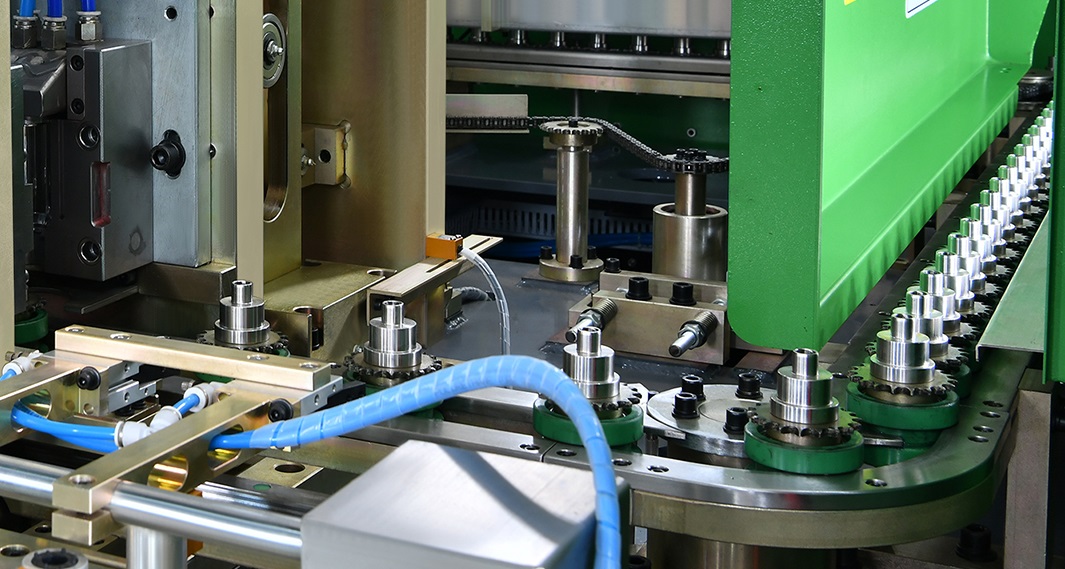

Modern PET blow molding machines feature PLCs and smart interfaces that allow precise control of both airflow and cooling. Integrating these into a unified system allows:

Real-time temperature and pressure monitoring

Automatic adjustment during production

Predictive maintenance alerts

Best Practice: Adopt Industry 4.0-ready machines or retrofit with IoT modules for remote diagnostics and adaptive performance control.

4. Maintenance Tips to Ensure Long-Term Performance

Even with the best optimization, regular maintenance ensures stable performance:

Inspect and calibrate air pressure gauges monthly.

Flush and descale cooling lines every 3–6 months.

Check for air leaks in valves and hoses.

Replace clogged filters and monitor compressor oil levels.

By incorporating preventive maintenance, your machine’s efficiency and bottle consistency will improve significantly.

5. Case Study: European Food Packaging Line Upgrade

A German PET bottle manufacturer for food-grade packaging upgraded their airflow sensors and cooling pumps. As a result:

Cycle times improved by 11%

Bottle rejection rates dropped by 17%

Energy consumption was reduced by 9%

This proves that airflow and cooling optimization are not just technical tweaks but strategic investments.

Conclusion

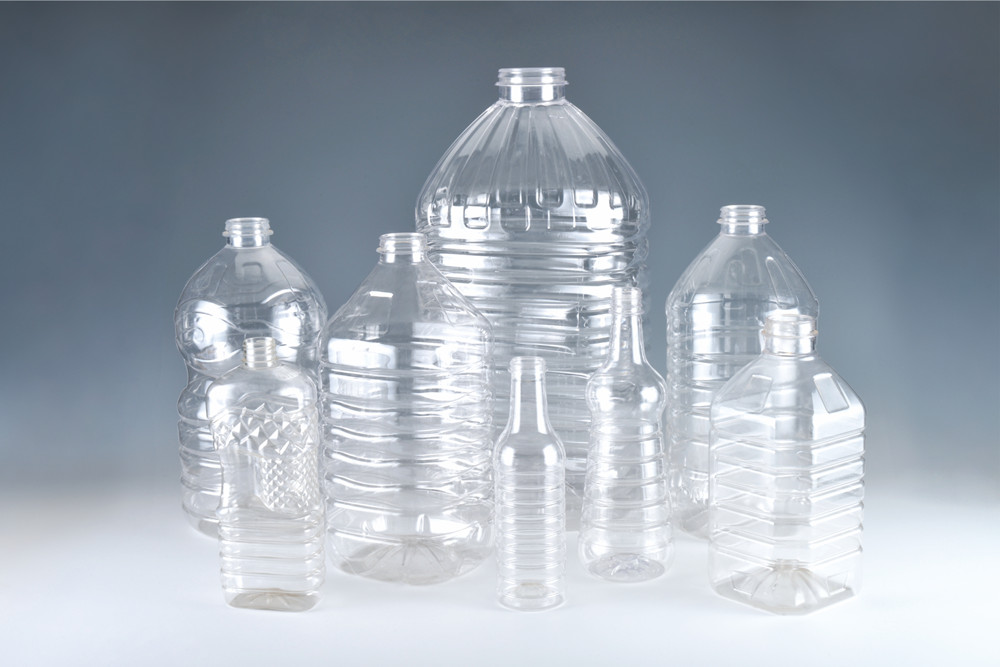

Airflow and cooling systems are the backbone of reliable and efficient PET blow molding operations. By fine-tuning these systems, manufacturers can improve product quality, reduce waste, and increase machine lifespan. Whether you're producing beverage bottles, cosmetics, or industrial containers, optimizing these systems will always yield long-term benefits.

Frequently Asked Questions (FAQs)

1. How often should I clean the cooling system of my blow molding machine?
At least once every 3–6 months, depending on your water quality and production volume.

2. What is the ideal air pressure range for PET bottle blowing?
Typically between 25-40 bar, but this varies by bottle size and design.

3. Can poor airflow affect bottle clarity?
Yes, inconsistent airflow can cause uneven stretching, leading to haze or stress marks.

4. What’s the advantage of using a closed-loop chiller?
It maintains consistent cooling temperatures, improving product uniformity and reducing cycle time.

5. How do I detect airflow inefficiencies?
Use digital sensors and flow meters to monitor real-time pressure and detect fluctuations or leaks.
